Quad Control

4 Node Retrofit Wifi Smart Switch compatible with alexa and google home. Fits behind any switch board.

alt
s
Where to buy

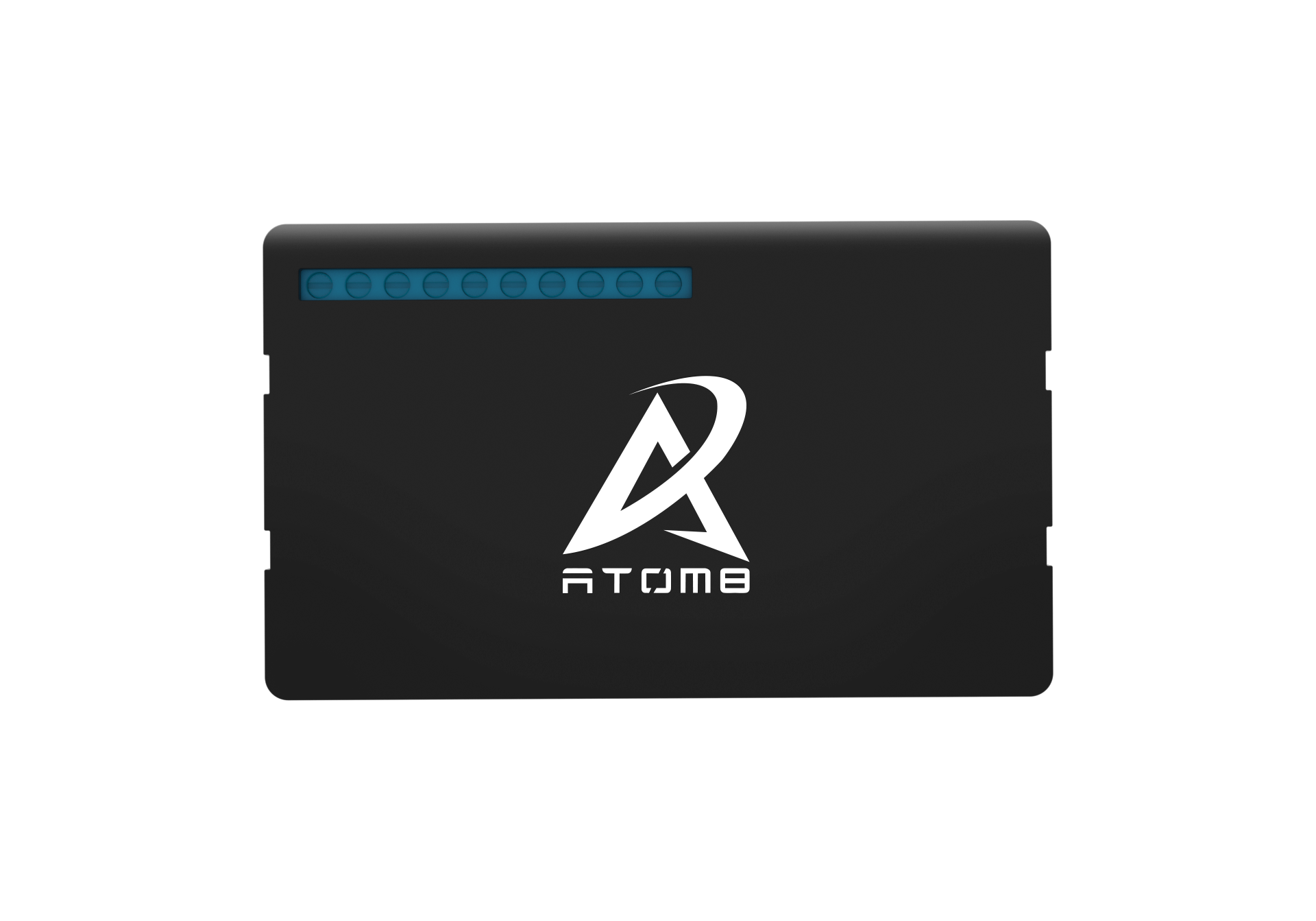

The ATOM8 Quad Retrofit Smart Switch is a professional grade 4 channel Wi-Fi smart switch that allows you to control your lights, fans, and other appliances from anywhere in the world using your smartphone or voice assistant. It is easy to install and compatible with most existing electrical wiring. It has a sleek, modern design that will complement any home décor.

What It Controls

Supports On/Off functionality of any 2 appliances

wall light automation
Wall Light
wall light automation
Chandelier
wall light automation
Fan
wall light automation
TV
wall light automation
Home Theater
wall light automation
Coffee Maker
wall light automation
Mobile Charger
wall light automation
Laptop Charger
duo-cat-image

Voice Control

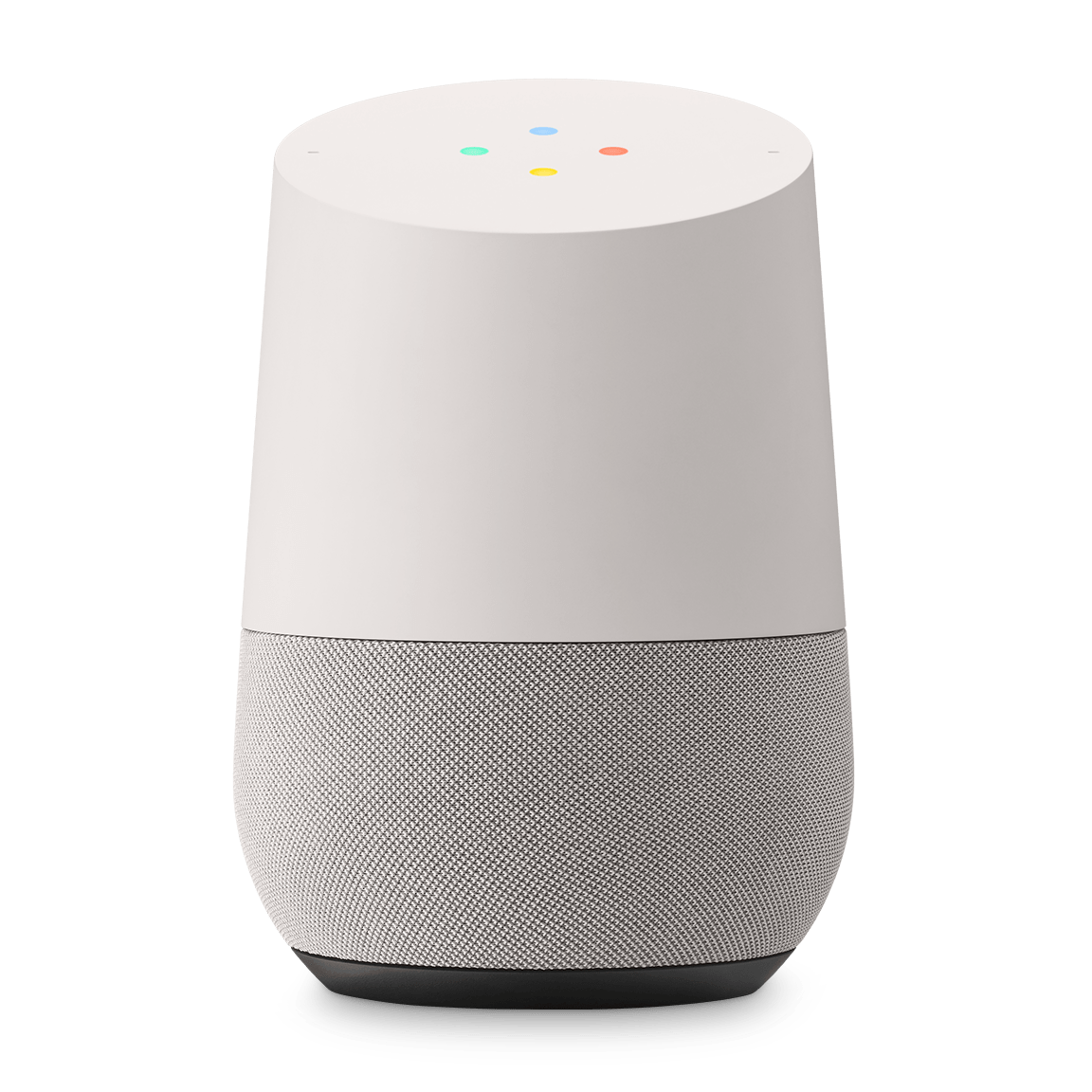

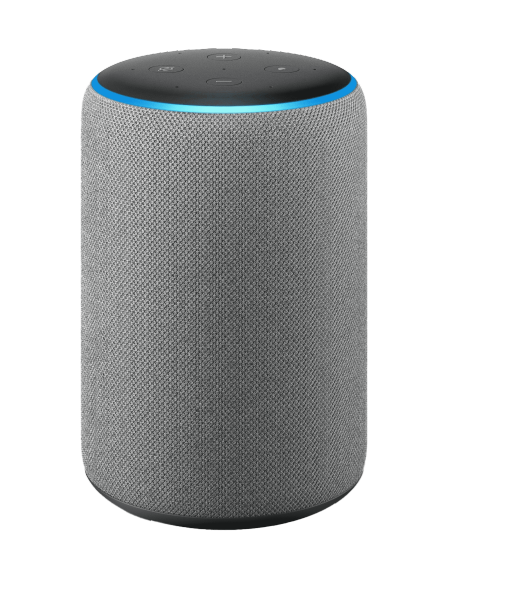

Control your devices over voice control using Amazon Alexa and Google Home.

works with google home
works with google home
works with google home
works with google home

Control Using

Control your appliances using many interfaces

duo-cat-image

Smartphone App

Control, schedule and customize all features using an easy to use smart phone app
duo-cat-image

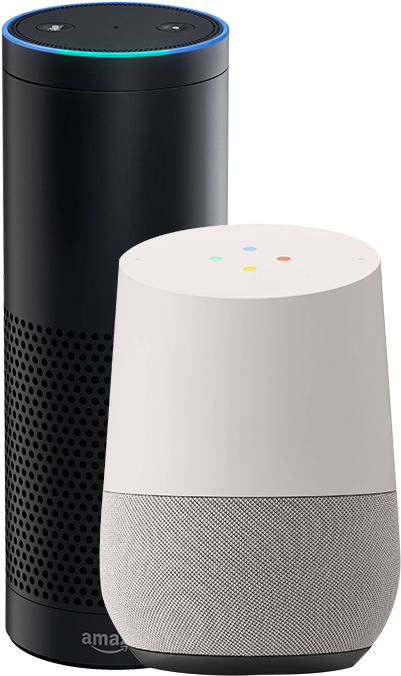

Voice Assistants

Control your appliances using AI powered voice assistants like Alexa and Google Home
duo-cat-image

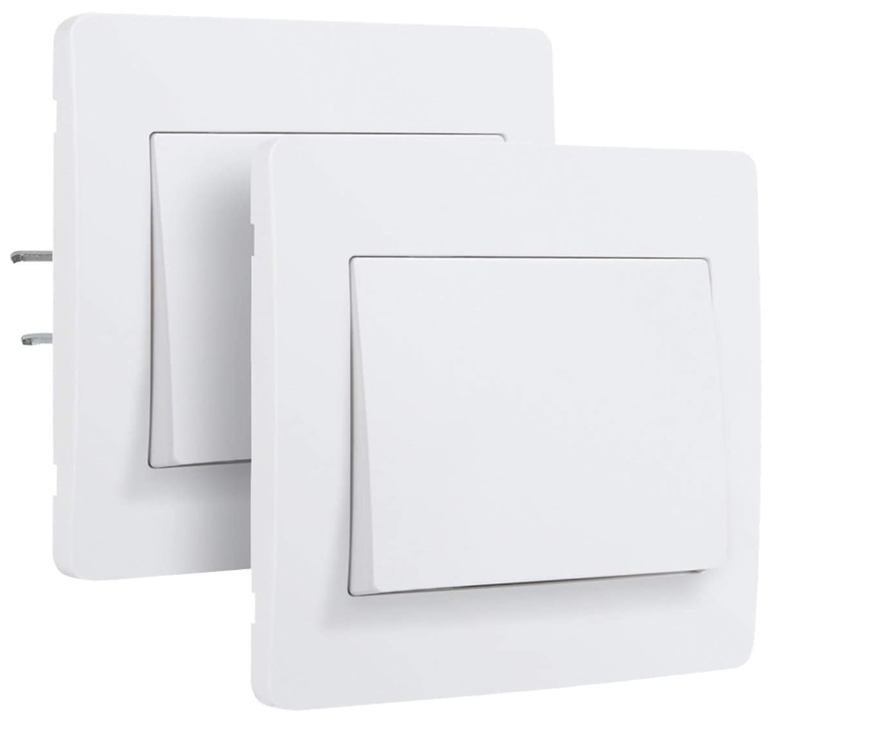

Regular Switches

Continue using regular switches. Your regular switches become 2 way switches.
duo-cat-image
wifi

Central Hub Not Required

Works on the proven and tested standards of the internet which makes it secure and future proof. No proprietary protocols resulting in vendor lock-in.

Extending signal to automation results in better Wi-Fi signal coverage across home. This means better Wi-Fi speeds and better streaming experience.

Extend signal using
Wi-Fi 6 MESH routers
Low latency of
< 200ms
Highly secure encryption type
256-bit AES
Highly secure encryption protocol
CCMP protocol

Monitor power consumption

The Uno heavy duty module is designed with a fully isolated power monitoring circuit which measures instantaneous voltage, current, active power and also total power consumed until that point in kWh with accuracy of up to 2%.

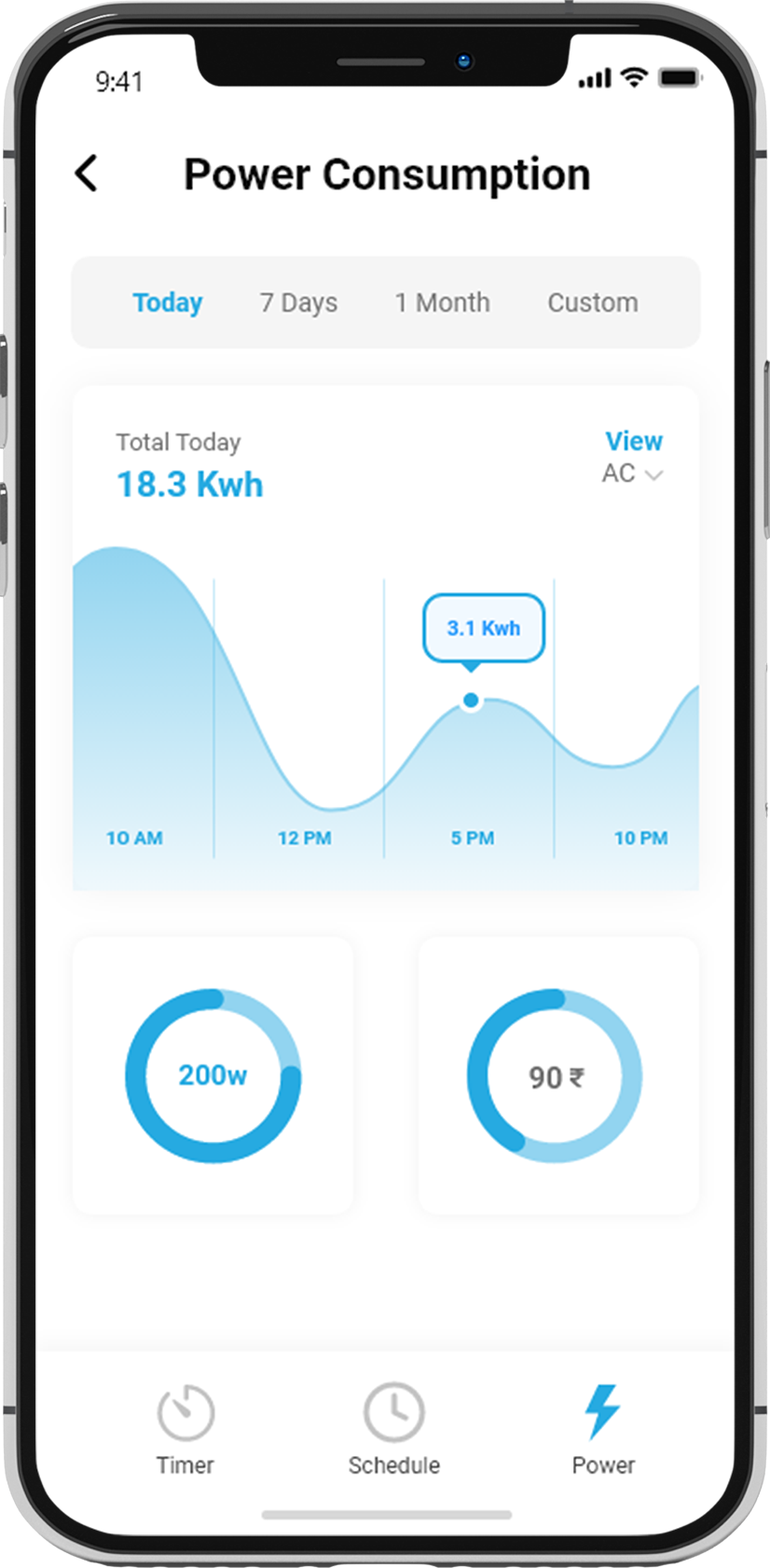

The ATOM8 app also shows power consumption charts and the historical power consumption by the device which gives an insight into the energy consumption patterns of the user. ATOM8 warns you about any power hungry devices.

schedule_1
duo-cat-image

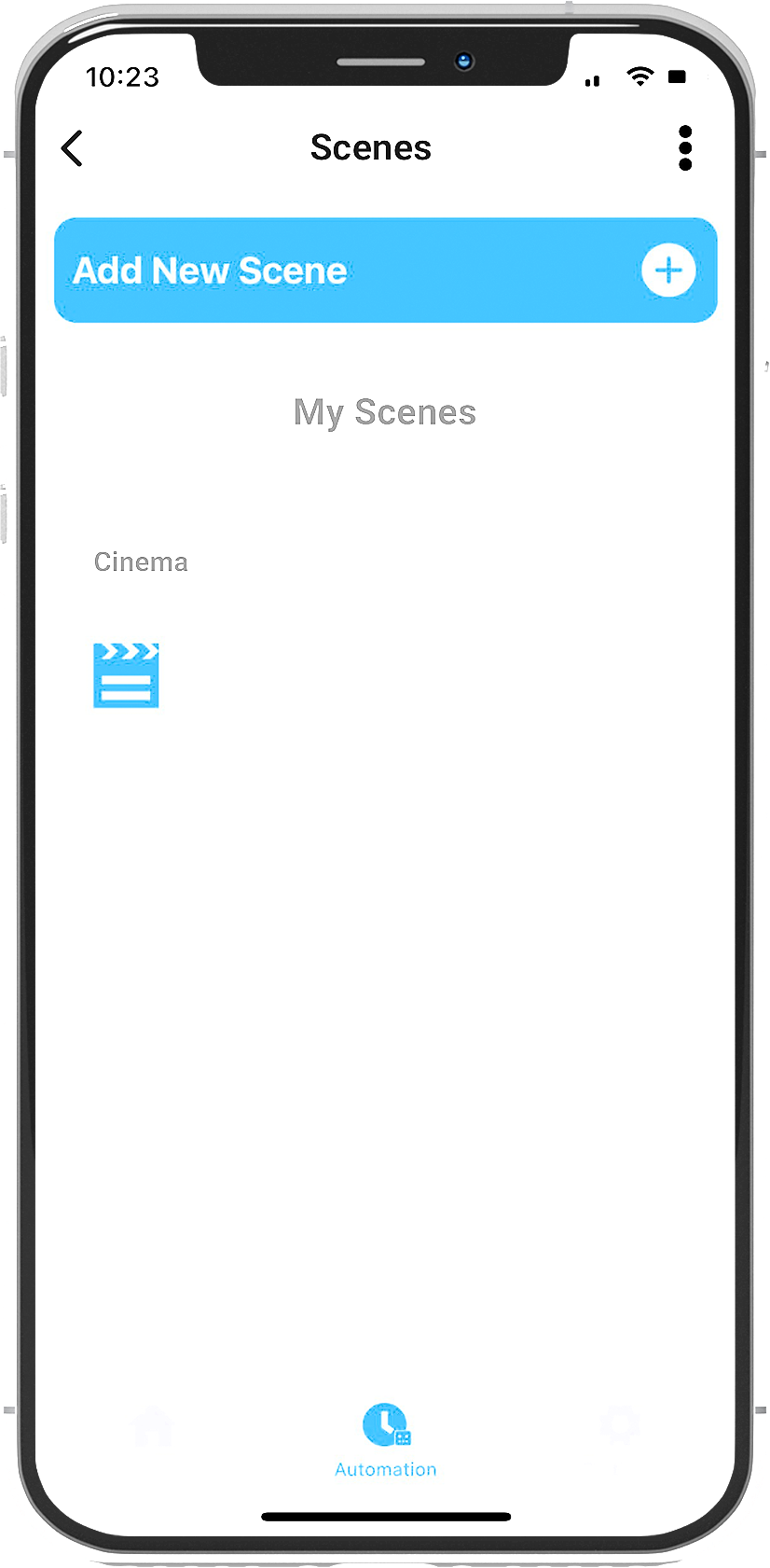

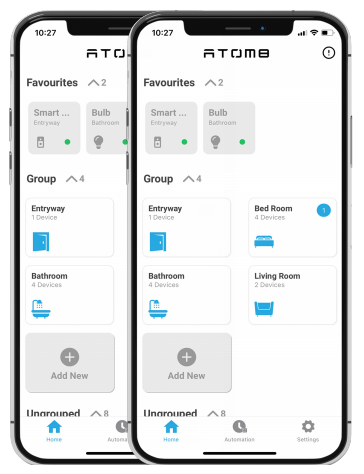

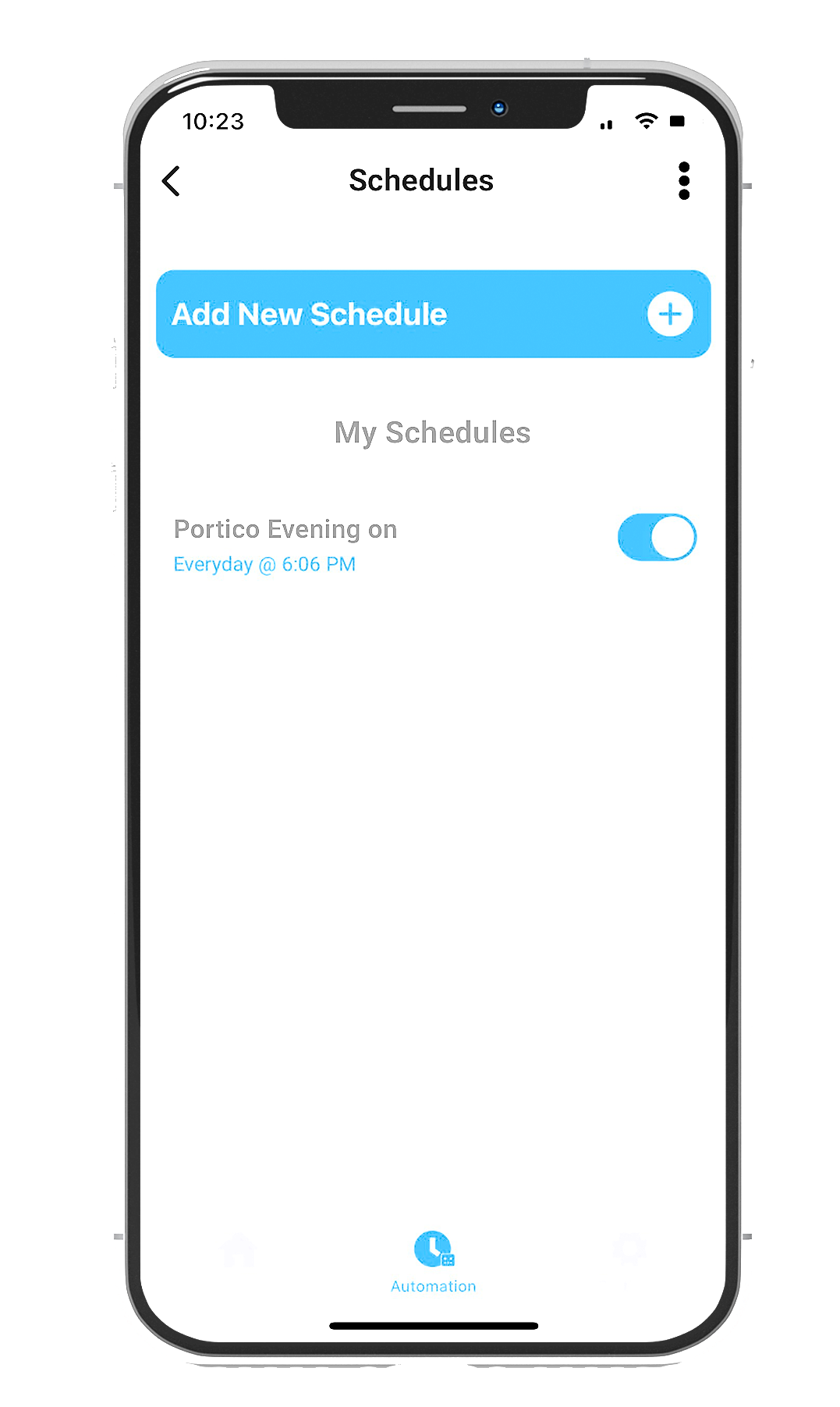

Customizable Groups, Schedules and Scenes

The ultimate solution to efffortless home automation is the ATOM8 app. The ATOM8 app! Whether you're relaxing on the couch or traveling abroad, take full control of your home with just a few taps on your smartphone. You can create schedules and automations to make your life easier. For example, you can set it to turn on your lights at sunset and off at sunrise, or to turn on your fan when it gets hot. You can also create automations to turn on your lights when you come home, or to turn off your TV when you fall asleep.

schedule_1
schedule_1
schedule_1

Tech Specs

Classification
Retrofit switch,
In-wall switch
Number of channels
4 channel On/Off operation
Operating input voltage
85 - 305VAC (~), 50/60 Hz
Actuating element
Electromagnetic relay
Output power (resistive load at 230 V)
1.25 kW
Device energy consumption
≤ 1 W
Maximum load
Continuous load - 750 W
Maximum load - 1.25 kW
Service life
At least 200,000 operartions at Continuous load
Operating temperature range
From 0°С to +65°С
Communication Protocol
Wifi 2.4GHz (802.11 b/g/n)
Security
TLS 1.2 Client Certificate based authorization with server
Router Compatibility
≤ 5 devices - Compatible with most commercially available routers

> 5 devices - Wifi MESH (Wifi 6) routers are recommended for stable operation. ATOM8 recommends TP Link Deco M5 Mesh routers which can support upto 50 connected wifi devices including laptop, smart phones and other smart home automation devices. Other reliable brands include Netgear Nighthawk, Netgear Orbi and Uniquiti

NOTE:- We do not recommend Wifi 5 based repeater solution as it is highly unreliable and can lead to frustrating experience.
Dimensions (L * W * H)
105mm * 61mm * 19mm
